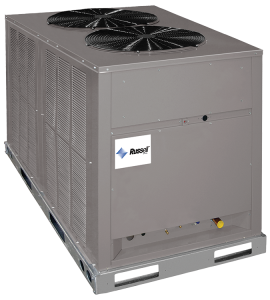

RAWL (10-15 Ton)

Features

Service Access.  Control box with separation between line and control voltages, as well as compressor and other refrigerant controls are accessible through removable panel without affecting normal operation of unit.

The Scroll® Compressor.  All of our residential/commercial package units, regardless of efficiency level, feature the Scroll Compressor. These scroll compressors use a more advanced technology than traditional reciprocating compressors. There is a separate compressor compartment for easy service access. External wrap around Crankcase heater helps prevent refrigerant migration to the compressor oil during long off periods. They have fewer moving parts; they are quieter, more efficient, longer lasting.

Durable Cabinet.  Our cabinets have a powder painted finish that protects them from the harshest weather extremes. Galvanized steel with powder coat paint finish. The powder coat paint finish is high gloss, durable and capable of withstanding a 1000-HR salt spray test per ASTM B117. The unit is of the frame and panel type of construction which allows all access panels to be opened or removed without affecting the structural strength of the unit. Fastening screws are also of the 1000-HR type. Stamped louver panels offer 100% protection for the condenser coil.

Refrigerant Connections.  Field piping connections are made through a fixed panel. This allows removal of access panels after piping connections have been made.

Motor/Fan Motor Mount.  Our mount helps protect the fan motor from the elements for longer life. Its design dependability helps reduce vibration and noise. Condenser fan motor(s) are mounted on removable top panel(s) which bring the motor(s) out to you and expose entire condenser coil for cleaning. Condenser fan motors (DirectDrive)—Ball bearing 1075 RPM motors are mounted to minimize vibration and noise problems. These are permanent split capacitor types.

Matched Blower/Evaporator Coil Unit.  The blower is responsible for the flow of air into your duct work. It has been designed to match the MultiFlex® evaporator coil and other system components for maximum efficiency and quiet operation. In addition, the coil features rifled copper tubing and enhanced fins for improved efficiency. Single slab, single pass designed evaporator coil facilitates easy cleaning for maintained high efficiencies.

Service Access.  Control box with separation between line and control voltages, as well as compressor and other refrigerant controls are accessible through removable panel without affecting normal operation of unit.
