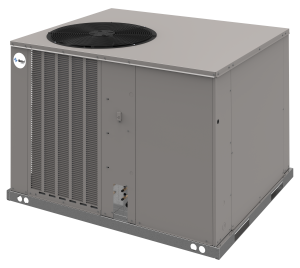

RHPXZS Vantix Line Packaged Heat Pump
Features
- Two-Stage Scroll Compressor: For maximum efficiency and quiet operation
- Louvered Condenser Compartment: Protects the coil against yard hazards and easily removable for condenser coil cleaning.
- One Piece Top with Drip Flange: Hel[s to keep water our of the unit
- Supply and Return Air Openings: Features a one-inch tail flange to prevent water migration into the ductwork.
- Access Panels: Easily removable and provides access to necessary components for serviceability.
- Side and Down Discharge Options: Available on all models (Shipped horizontal flow standard).
- Easily Accessible Blower Section: Features a slide-out blower.
- Conveniently Located Refrigerant Connections: For easy service diagnostics. Low pressure/loss of charge protection is standard on all models.
- Evaporator and Condenser Coils: MicroChannel evaporator coil delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils.
- Supplemental Electric Heat Strips: Up to 15 kW are available (field or factory installed) for periods of extreme cold temperatures. Single point wiring simplifies installation.
- Easily Accessible Control Box
- Thermal Expansion Valve: Is standard on all models and provides superior control, reliability, and energy efficiency at all operating conditions.
- Filter Drier: Is standard on all models.
- Rugged Baserail: Included for improved installation and handling.
- Reversing Valve Directs Flow of Refrigerant: And reverses the refrigerant flow when heating is required.
Specs
Nominal Sizes: 2 to 5 Tons [7.03 to 17.6 kW]
Cooling Efficiency: 15.2 SEER2
Heating Efficiency: 7.2 HSPF2
DocumentsRHPXZS Vantix Line iR Packaged Heat Pump
Warranty
Residential Applications:
Conditional Parts (Registration Required): 10 years
Compressor: 10 Years
Commercial Applications:
Parts: 1 Year
Compressor: 5 Years
